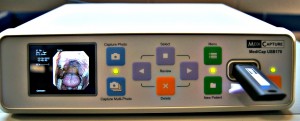

MediCap USB-170 Medical Still Image Capture Device

MediCap USB-170 Medical Still Image Capture Device

USB-170

MediCap USB-170 Medical Still Image Capture Device.  Brand new with a 12 month warranty.

  • Records still images from medical video sources
  • Save still images to an external USB flash drive or optional hard drive at the touch of a button
  • Color LCD monitor on the front panel
  • Small, portable and rugged
  • Little or no training needed

Specifications:

  • Image Formats:  JPEG, TIFF, PNG, DICOM
  • Image Size:  1024 x 768, 800 x 600, 640 x 480 pixels
  • Video Inputs:  S-Video, Composite
  • Video Outputs:  S-Video, Composite
  • LCD Monitor:  2.5″, full color (for video confirmation and navigation only, not for diagnosis
  • External Media:  MediCapture Branded USB flash drives or hard drives
  • USB Support:  USB 2.0 high speed, 1 front connector, 3 rear connectors
  • Footswitch/Trigger:  Standard 3.5mm mini jacks
  • Mechanical:  240mm x 200mm x 63mm (9.5″ x 7.9″ x 2.5″) Weight: 1.7kg (3 lbs 12 oz)
  • Kit Contents:  MediCap 200,USB flash drive, video and power cables, user guide
Price: $2,750.00
