TEAC UR-4MD High Definition Medical Imaging Recorder

$4,500.00

SKU: UR-4MD



TEAC UR-4MD High Definition Medical Imaging Recorder.  Brand new with a 12 month warranty.

  • TEAC UR-4MD (UR4MD) is TEAC’s latest high-definition medical video recorder designed for quick set up and ease of use, yet includes a robust list of features and capabilities. With auto sensing video connections and automatic video resolution detection, set up is quick and easy. The TEAC UR-4MD (UR4MD) front control panel allows users to intuitively record videos and photos in crystal clear HD. A built in hard drive is included for reliable recording, data back-up and users can also simultaneously record to USB memory and USB hard drives to archive, share and play back on other devices and locations. TEAC UR-4MD (UR4MD) is also Network capable.

Specifications:

  • General

    Recordable Devices USB Flash Drive
    USB Hard Drive
    Internal Hard Drive (500GB)
    Display 3.5 inch LCD
    Power supply AC 100V – 240V 50/60Hz
    Operating temperature 41 to 104 deg F (5 to 40 deg C)
    Storage temperature -4 to 140 deg F (-20 to 60 deg C)
    Operating humidity 5 to 80% (No condensation)
    Dimention (W x D x H) Approx. 8 1/4 x 9 1/4 x 3 3/8 in ( 210.5 x 235 x 88.5 mm)
    Weight Approx. 5.7 lbs. (2.6 kg)
    Standards Safety IEC60601-1, CSA60601-1, EN60601-1, CE
    EMC IEC60601-1-2, EN60601-1-2, ICES-003, VCCI Class B, FCC Class B
    Certifications CSA NRTL
    Accessories(Optional) Remote control unit, Foot-switch, Keyboard, Barcode / Card Reader

    Recording Format

    Still image Jpeg
    Video MPEG-4 AVC/H.264

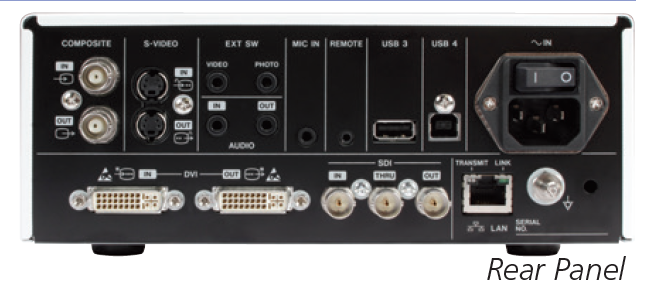

    Input/Output

    Input for Video SDI (BNC) x1 3G/HD-SDI: 1080p / 1080i / 720p SD-SDI: 480i / 576i
    DVI (Single Link) x1 640 x 480 to 1920 x 1200
    S-Video x1 NTSC, PAL
    Composite (BNC) x1 NTSC, PAL
    Input for Audio SDI (BNC) x1 ∗SDI video input terminal use in common.
    Stereo mini jack x2 LINE, MIC
    Output for Video SDI (BNC) x1 3G/HD-SDI: 1080p / 1080i / 720p SD-SDI: 480i / 576i
    DVI (Single Link) x1 640 x 480 to 1920 x 1200
    S-Video x1 NTSC, PAL
    Composite (BNC) x1 NTSC, PAL
    3G/HD/SD-SDI Thru x1 3G/HD-SDI: 1080p / 1080i / 720p SD-SDI: 480i / 576i
    Output for Audio SDI (BNC) x1 ∗SDI video output terminal use in common.
    Stereo mini jack x1 LINE
    Other Interfaces RJ-45 (10BASE-T / 100BASE-TX /1000BASE-T) x1
    USB2.0 Type A x3 2 front connectors for Recordable Devices
    1 rear connector for Optional Accessories
    USB2.0 Type B x1 1 rear connector for accessing the internal Hard Drive (on UR-4MD)
    Stereo mini jack x3 for external trigger

    ∗Features and specifications are subject to change without notice.

    Approximate Recording Times for a 500GB Hard Drive

    High-Definition 1920 x 1080
    12Mbps 18Mbps 24Mbps
    90 hours 60 hours 45 hours
    Standard-Definition 640 x 480
    5Mbps 8Mbps 10Mbps
    180 hours 135 hours 100 hours
